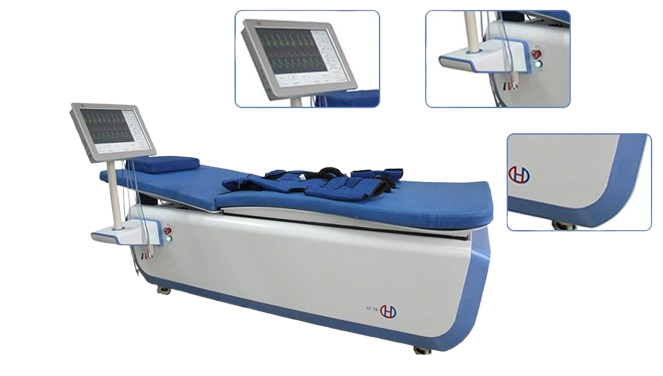

P-ECP/TI EECP All-in-one Touch Screen Type
P-ECP/TI EECP
Minimum inflation start time is greater than 100ms at the heart rate of 40bpm~160bpm; Maximum deflation start time is not greater than 700ms at the heart rate of 60bpm
Product Dimensions and Weight (P-ECP/TI)
Physical dimensions: length × width × height = 2070mm × 1120mm × 1100mm
Net weight: 220kg
Gross weight: 300kg
Certifications
U.S. Federal Drug Administration (FDA) cleared
-EC Certificate of Conformity (CE)
-ISO 13485: 2016
KF DA cleared/Korea
GOST R cleared/Russia
MDA/Malaysia
KEMENKES RI AKL/Indonesia
INVIMA registered/Colombia
P-ECP/TI EECP
P-ECP/TI EECP DETAIL
Operation Environment
Ambient temperature: 10°C~30°C;
Relative humidity: less than 85%;
Atmospheric pressure (absolute pressure): 70kPa~106kPa;
Well ventilated and free of dust, corrosive gases and strong electromagnetic interference.
Power Requirements
AC single phase: 220V 50Hz/60Hz
Maximum power: 2.6KVA
Triggering Method
External trigger: R-wave of patient ECG
External trigger ratio: 1:1 or 1:2
ECG triggers range: 35~ 125 +2 bpm for adults
